party Verstärkerkoffer (Phonokoffer) 300AV (Dp300AV chassis 300A + V3)
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1960–1962
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 24116

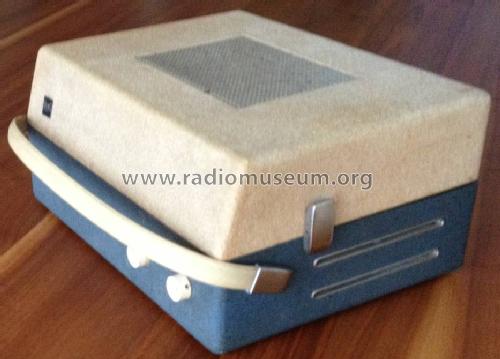

180mm Lautsprecher, im Deckel eingebaut

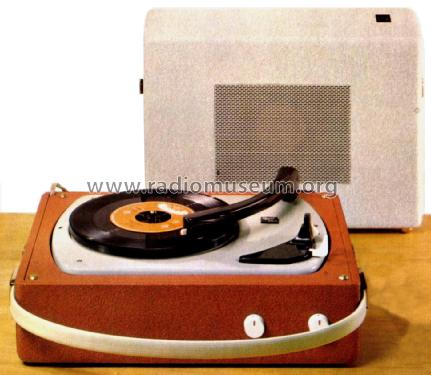

Ausschnitt aus Dual Katalog 1960
Q: Dual, Katalog 1960/61
Q: Dual, Katalog 1960/61
Q: Dual, Produkt-Katalog 1960
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- ECL86
- Number of Transistors
- Semiconductors
- E250C50
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 25 Watt, 110; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Power out
- 4.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: party Verstärkerkoffer 300AV - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 330 x 260 x 160 mm / 13 x 10.2 x 6.3 inch
- Notes
-
Dual party 300AV

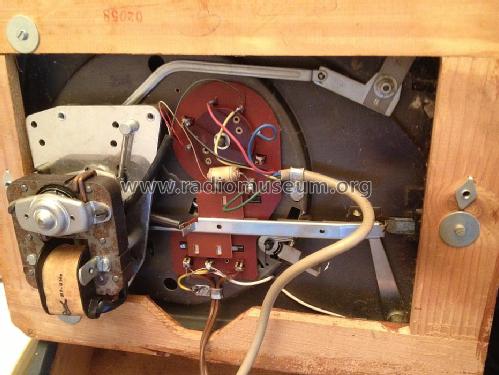

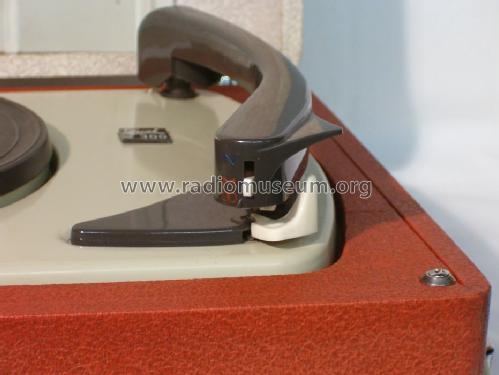

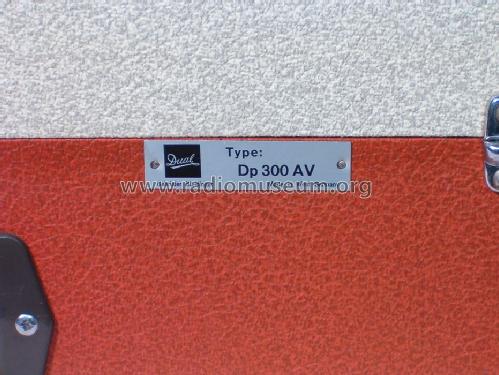

Der Verstärkerkoffer Dp 300 AV mit Plattenspieler Chassis 300A und Verstärker Typ V3 bietet Geschwindigkeiten von 16, 33, 45, 78 Upm. Stereo-Kristall-System CDS 320 oder CDS 520 - beide mit Abtastnadel DN 3 (55mN). Schema 25F-G1 vom 16. Mai 1960. Grösse in der Praxis (inkl. Knöpfe, Schnallen) 350 x 160 x 280 mm, Gewicht 6.24 kg.
Im Dual Katalog 1960 abgebildet mit Bedienknöpfen links, angegeben mit 4,5 Watt und mit Phono-Chassis 300.
Im Dual Katalog 1960/61 mit Bedienknöpfen rechts, angegeben mit 3,5 Watt und mit Phono Chassis 300A.
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Price in first year of sale
- 217.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original prospect or advert (Dual Katalog 1960 und 1960/61, Dual/PE Buch von Kotschreuther)
- Literature/Schematics (1)
- -- Original-techn. papers.
