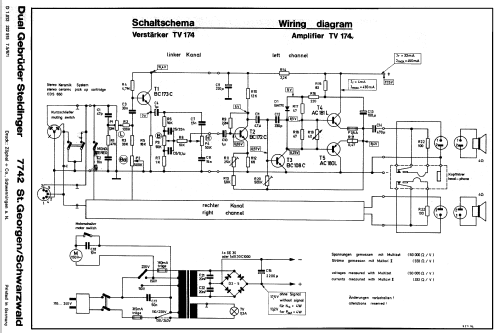

Dual, Gebr.: P44 Ch= TV174 [R-Player] ID = 2121062 1386x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model P44 Ch= TV174, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1971/1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 10: BC173 BC173 BC172 BC172 BC108 BC108 AC181 AC181 AC180 AC180
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 150; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 8 W (12 W max.)
from Radiomuseum.org Model: P44 Ch= TV174 - Dual, Gebr. Steidinger; St.
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 200 x 340 mm / 16.1 x 7.9 x 13.4 inch
Notes

P 44 Plattenwechsler-Verstärkerkoffer in Stereo

NF-Verstärker (TV174) mit zwei Endstufen je 4 Watt (Sinus) / 6 Watt (Musik), Übertragungsbereich 20 - 20.000Hz ± 3 dB.

Phono-ChassisDual 1210A Automatikspieler, (33/45/78UpM) mit Keramiksystem
CDS 650 mit Nadel DN6 (Auflagekraft 40mN) 20 - 16.000Hz

Lautsprecherboxen: 2 x Spezial - Breitbandlautsprecher 260 x 130mm, Belastbarkeit 6 Watt, Übertragungsbereich 80 - 16.000Hz, im serienmäßigen Lieferumfang.

Abdeckhaube (Plexiglas) CH9 als Sonderzubehör
Holzgehäuse mit Kunstlederbezug
Gehäusefarbe: anthrazit

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 488.00 DM
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Dual Programm 1971/72, Serviceanleitung Aug. 1971)
Literature/Schematics (1) -- Schematic

Model page created by Edith Mills. See "Data change" for further contributors.
