• Country
• France

• Manufacturer / Brand
• Ducastel Frères (DAHG); Clichy, Paris

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62972

• • Brand: DAHG

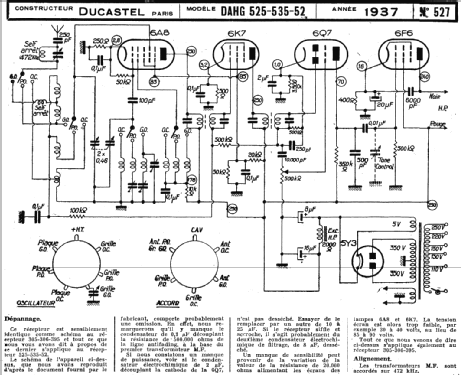

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

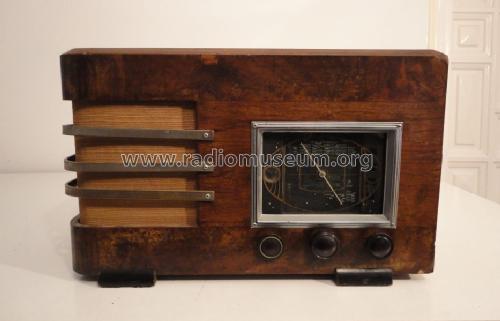

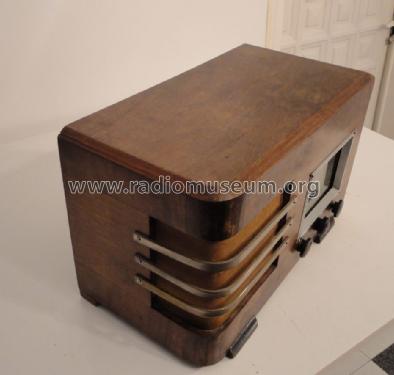

• Model: DAHG 535 - Ducastel Frères DAHG; Clichy,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 310 x 280 mm / 19.7 x 12.2 x 11 inch

• External source of data
• Serge Laffont/Martin Renoth

• Other Models

• Here you find 89 models, 38 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
