RR2404.2

RR2404.2; Ducati, SSR Società (ID = 165629) Radio
RR2404.2; Ducati, SSR Società (ID = 2106441) Radio RR2404.2; Ducati, SSR Società (ID = 2106442) Radio
RR2404.2; Ducati, SSR Società (ID = 2229406) Radio RR2404.2; Ducati, SSR Società (ID = 2229407) Radio
RR2404.2; Ducati, SSR Società (ID = 2229408) Radio
Use red slider bar for more.
RR2404.2; Ducati, SSR Società (ID = 2106441) Radio
Ducati, SSR Società: RR2404.2 [Radio] ID = 2106441 1400x948
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR2404.2, Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

Country:  Italy
Manufacturer / Brand:  Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6 35Z5
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: RR2404.2 - Ducati, SSR Società
Shape Tablemodel, low profile (big size).
Notes

Serie Metalist.

Il telaio è collegato alla rete elettrica sia in funzionamento CA che CC. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 51)

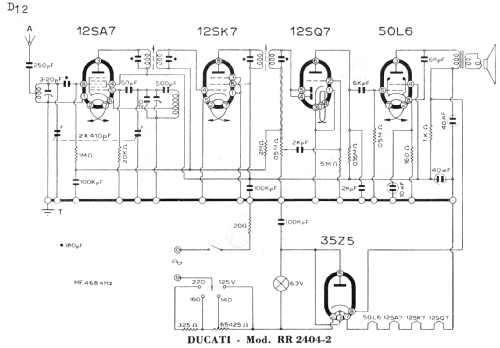

Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.
