• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88722

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

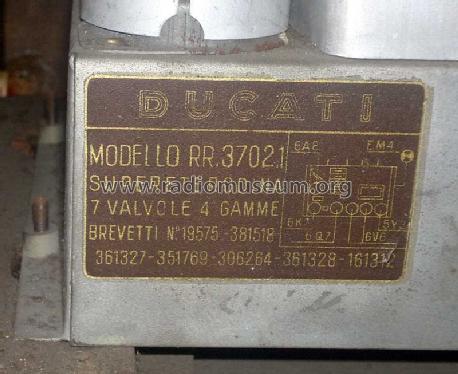

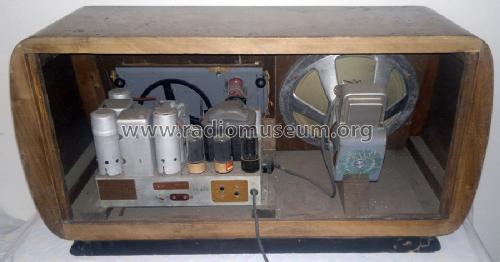

• 6A8G 6K7G 6Q7G 6V6G EM4 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands

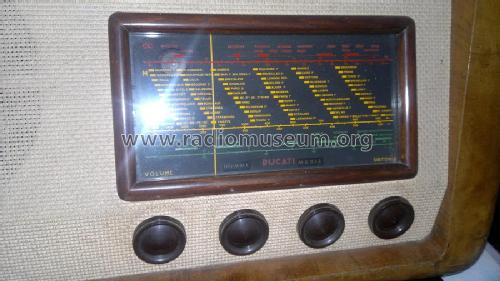

• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

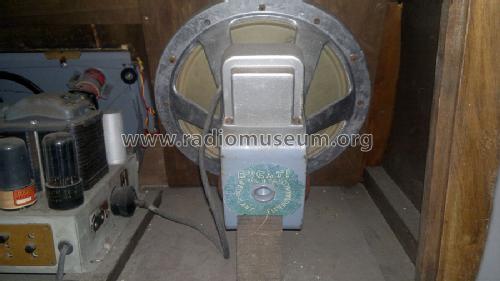

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

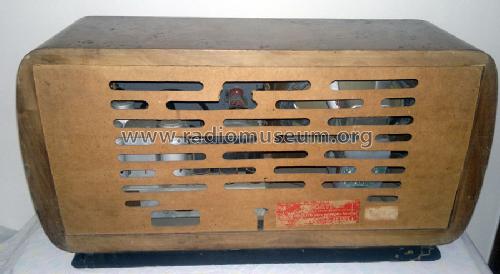

• Material
• Wooden case

• from Radiomuseum.org

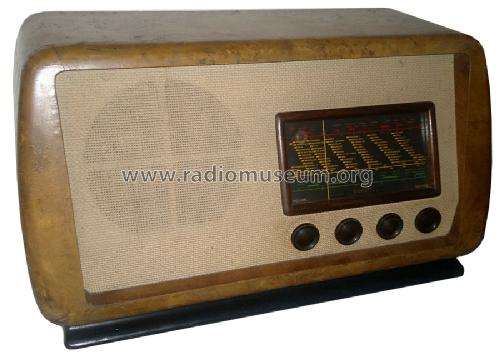

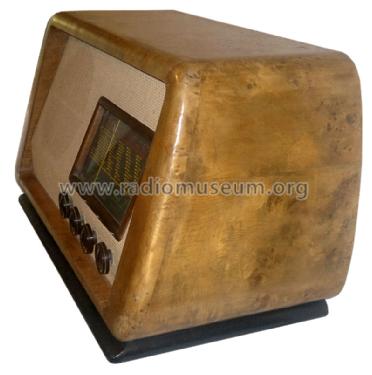

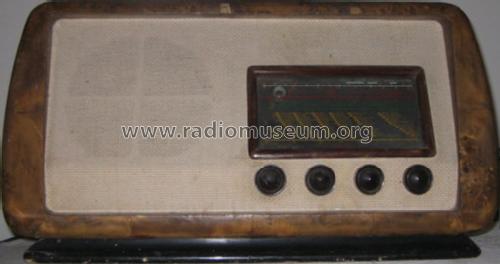

• Model: RR3702 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 740 x 390 x 340 mm / 29.1 x 15.4 x 13.4 inch

• Notes

• Presa per altoparlante supplementare in parallelo al primario del trasformatore di uscita. Controllo di tono a 3 posizioni. Ingresso per giradischi.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 49)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 102 models, 83 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
