• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316561

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 6V6 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch

• Power out
• 3 W (unknown quality)

• Material

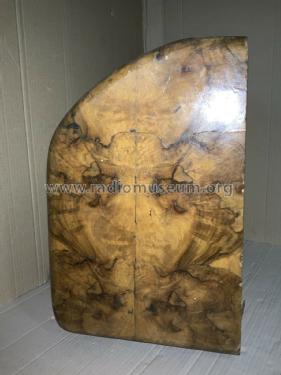

• Wooden case

• from Radiomuseum.org

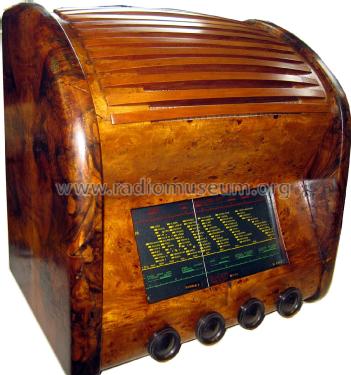

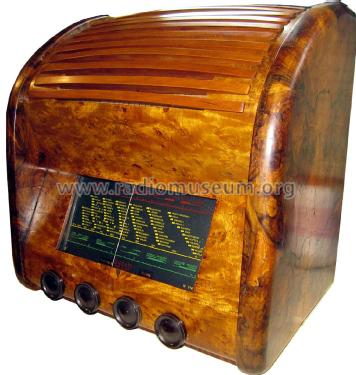

• Model: RR4403.1 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 450 x 300 mm / 17.7 x 17.7 x 11.8 inch

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
