• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62582

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

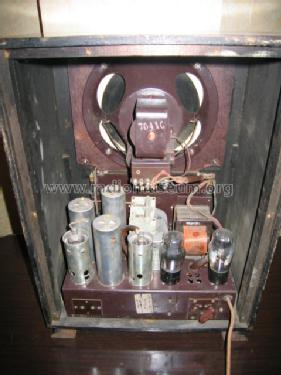

• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115-230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: C 735 - Ducretet -Thomson; avant:

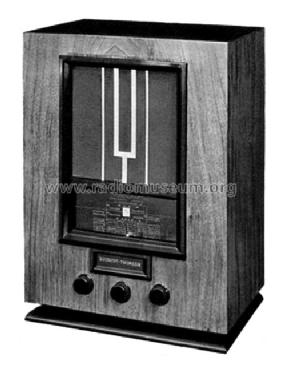

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 370 x 510 x 260 mm / 14.6 x 20.1 x 10.2 inch

• Notes

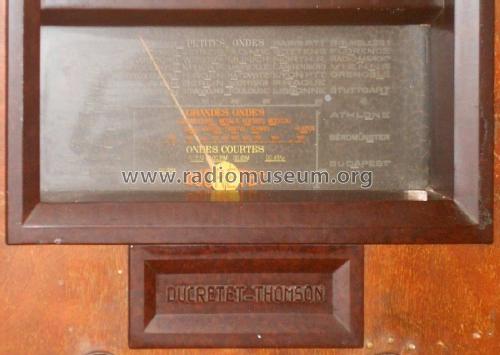

• 3 gammes d'ondes : OC de 19 à 50 m, PO de 1500 à 550 kHz, GO de 350 à 150 kHz. Antifading. Contrôle de tonalité.

  Ce récepteur est identique au C725OC sauf l'ébénisterie et le diamètre du HP.

• Price in first year of sale
• 1,580.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 285)

• Literature/Schematics (1)
• -- Original prospect or advert

• Literature/Schematics (2)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 162)

• Literature/Schematics (3)
• -- Original prospect or advert (Le Journal, 06.09.1936)
