C80 25 périodes, 110 V

C80; Ducretet -Thomson; (ID = 2024969) Radio

C80; Ducretet -Thomson; (ID = 2024970) Radio

C80; Ducretet -Thomson; (ID = 2024971) Radio

C80; Ducretet -Thomson; (ID = 2024972) Radio

C80; Ducretet -Thomson; (ID = 2024973) Radio

C80; Ducretet -Thomson; (ID = 2024974) Radio

C80; Ducretet -Thomson; (ID = 2024975) Radio

C80; Ducretet -Thomson; (ID = 2024976) Radio
C80; Ducretet -Thomson; (ID = 2025048) Radio
Use red slider bar for more.
C80; Ducretet -Thomson; (ID = 2025048) Radio
Ducretet -Thomson;: C80 [Radio] ID = 2025048 650x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model C80 25 périodes, 110 V, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris:

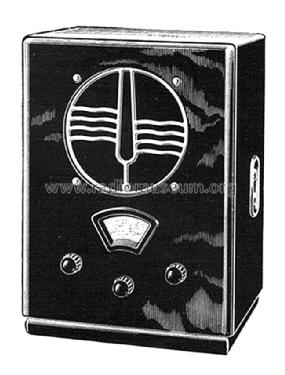

Publicité 1934

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 56 58 58 55 47 47 80
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: C80 [25 périodes, 110 V] - Ducretet -Thomson; avant:
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Anti-fading, réglage silencieux, anti-parasites, filtre de tonalité. Étage HF, étage BF en push-pull. Prise pick-up.

Les parties HF, MF, détection, commande automatique de volume et suppresseur de bruit sont les mêmes que sur modèle C70.

Modèle pour alimentation sur secteur alternatif 25 périodes. Voir aussi le modèle pour 50 périodes qui fonctionne sur tensions de 100 à 260 volts.

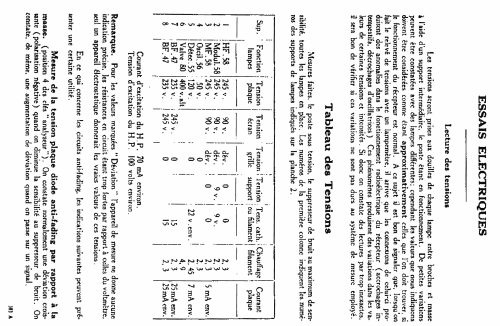

Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
Here you find 605 models, 449 with images and 252 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
