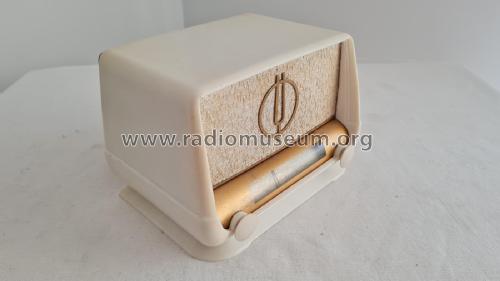

D2923 troisième modèle

D2923; Ducretet -Thomson; (ID = 211305) Radio
D2923; Ducretet -Thomson; (ID = 680711) Radio D2923; Ducretet -Thomson; (ID = 680712) Radio
D2923; Ducretet -Thomson; (ID = 680713) Radio D2923; Ducretet -Thomson; (ID = 1105937) Radio
Use red slider bar for more.
D2923; Ducretet -Thomson; (ID = 680711) Radio
Ducretet -Thomson;: D2923 [Radio] ID = 680711 425x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model D2923 troisième modèle, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris:
Nennt sich mit dieser Bestückung D2923K

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 115/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: D2923 [troisième modèle] - Ducretet -Thomson; avant:
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 190 x 130 x 130 mm / 7.5 x 5.1 x 5.1 inch
Notes Separate Adapters each for 220 V AC and 220 V DC.
Net weight (2.2 lb = 1 kg) 1.620 kg / 3 lb 9.1 oz (3.568 lb)
External source of data Serge Laffont/Martin Renoth
