D2923 premier modèle

• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68460

• • alternative name: SED

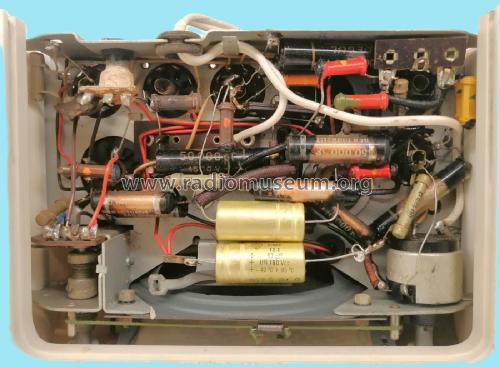

• Picture

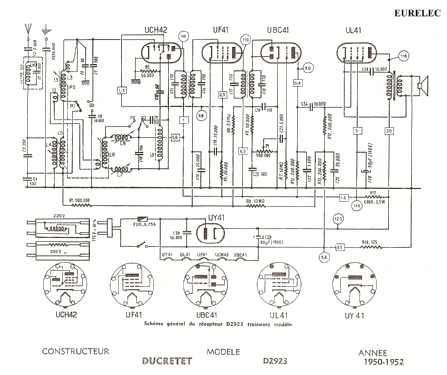

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: D2923 [premier modèle] - Ducretet -Thomson; avant:

• Dimensions (WHD)
• 190 x 130 x 130 mm / 7.5 x 5.1 x 5.1 inch

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• External source of data
• Serge Laffont/Martin Renoth
