• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 326145

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

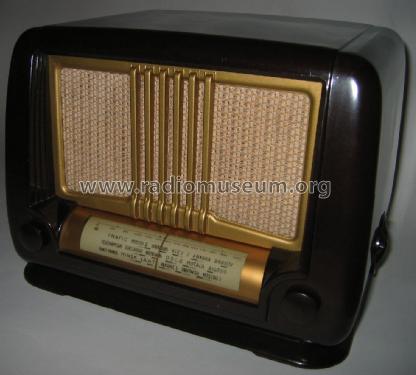

• Model: D2925 [UAF41] - Ducretet -Thomson; avant:

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 200 x 190 mm / 11.4 x 7.9 x 7.5 inch

• Notes

• Voir aussi le 2ème modèle D2925 avec UBC41.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Tim Küpper. See "Data change" for further contributors.
