• Year
  • 1949/1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 191405
    • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 135; 150; 220; 250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

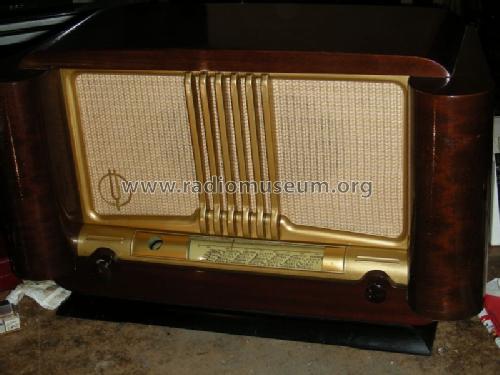

  • Model: D936 - Ducretet -Thomson; avant:
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 600 x 354 x 260 mm / 23.6 x 13.9 x 10.2 inch
  • Notes
  • 3 gammes d'ondes : GO de 150 à 415 kHz, PO de 515 à 1580 kHz, OC de 6 à 19 MHz. HP elliptique de 16 x 24 cm. Contre-réaction BF.

    Possibilité d'adjonction d'un bloc HF auxiliaire pour l'écoute de la gamme chalutiers de 69 à 190 m.

    Ébénisterie acajou verni, décor bronze vig.

    Ce modèle existe en deux versions : l'un avec UAF41, l'autre avec UAF42.

  • Net weight (2.2 lb = 1 kg)
  • 9.7 kg / 21 lb 5.9 oz (21.366 lb)
  • Source of data
  • -- Original-techn. papers.
  • Mentioned in
  • -- Original prospect or advert (Série 1950)
