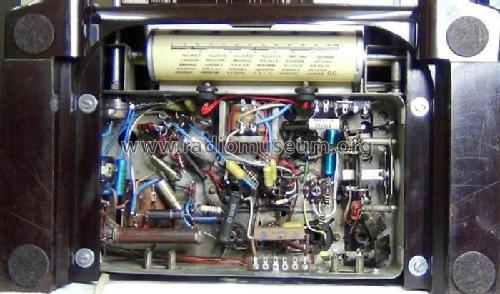

L124; Ducretet -Thomson; (ID = 1512648) Radio L124; Ducretet -Thomson; (ID = 1512649) Radio
Use red slider bar for more.

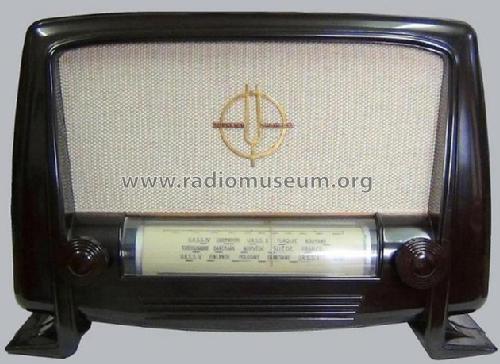

L124; Ducretet -Thomson; (ID = 1512650) Radio
Ducretet -Thomson;: L124 [Radio] ID = 1512650 630x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model L124, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris:
Restauré en Août 2013 - Collection Privée - Patrice Schoser

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: L124 - Ducretet -Thomson; avant:
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 340 x 240 x 230 mm / 13.4 x 9.4 x 9.1 inch
External source of data Serge Laffont/Martin Renoth


All listed radios etc. from Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
Here you find 631 models, 484 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
