• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 68520
    • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 115-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org

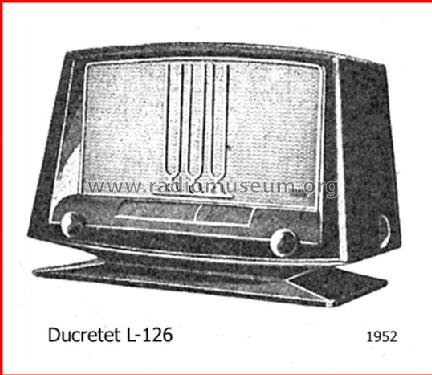

  • Model: L126 - Ducretet -Thomson; avant:
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 290 x 220 mm / 16.5 x 11.4 x 8.7 inch
  • External source of data
  • Serge Laffont/Martin Renoth
