• Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 68724
    • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

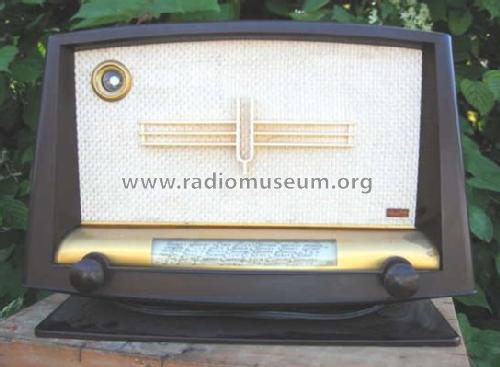

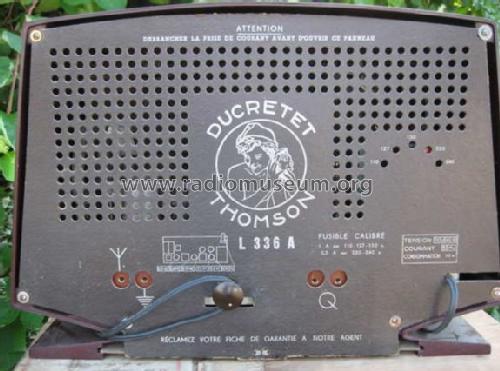

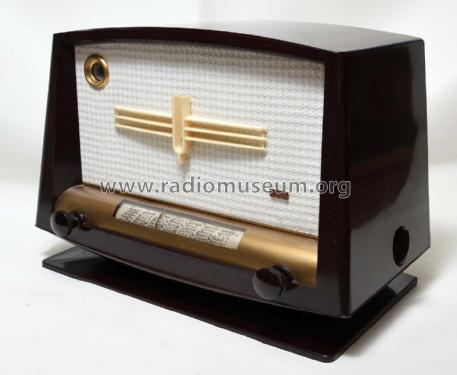

  • Model: L336A - Ducretet -Thomson; avant:
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • 25Hz models are also known.
  • External source of data
  • Serge Laffont/Martin Renoth
