Micro DVD System D-MIN7302 DVD/CD/USB

Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484824) Radio Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484825) Radio
Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484826) Radio Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484827) Radio
Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484828) Radio
Use red slider bar for more.
Micro DVD System D-MIN7302 DVD/CD/USB; Dunlop brand (ID = 2484824) Radio

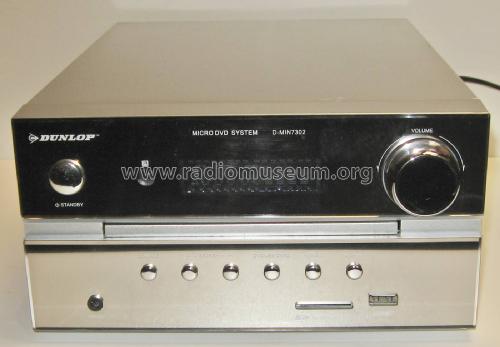

Dunlop brand: Micro DVD System D-MIN7302 DVD/CD/USB [Radio] ID = 2484824 1400x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model Micro DVD System D-MIN7302 DVD/CD/USB, Dunlop (brand)

Country:  Worldwide
Manufacturer / Brand:  Dunlop (brand)
Year: 2008 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes HL-D165
Semiconductors (the count is only for transistors) Semiconductors present. PT6312 LC72131 unknown_IC W78E052C40 CEP703 PT2313 LM358 24C02 TDA7269 MT1389 A25L080 IC42S16100 NJM4558 AM5888 KA5M0365R TL431 EL817
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Other Combination - see Notes; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Micro DVD System D-MIN7302 DVD/CD/USB - Dunlop brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 200 x 106 x 300 mm / 7.9 x 4.2 x 11.8 inch
Notes

Kombination aus AM/FM-Radio und Player für CD, DVD, SD-Karte oder USB-Stick.

Ein-/Ausgänge frontseitig: Phones, SD-Card, USB.

Ein-/Ausgänge rückseitig: Video Out, S-Video Out, Component Video Out, SCART Output, Coaxial Audio Out digital, Optical Audio Out digital, Audio Out analog L+R, Speaker Out L+R, Antenne FM (75Ω), Antenne AM.

Leistungsaufnahme: 35W.

Halbleiterliste nicht vollständig.

Net weight (2.2 lb = 1 kg) 2.102 kg / 4 lb 10.1 oz (4.63 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
