B48

B48; Dux Radio AB; (ID = 496172) Radio B48; Dux Radio AB; (ID = 496173) Radio
B48; Dux Radio AB; (ID = 496174) Radio B48; Dux Radio AB; (ID = 496175) Radio

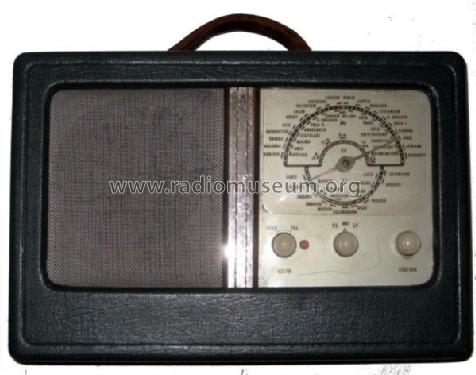

B48; Dux Radio AB; (ID = 1790614) Radio B48; Dux Radio AB; (ID = 1790615) Radio
Use red slider bar for more.

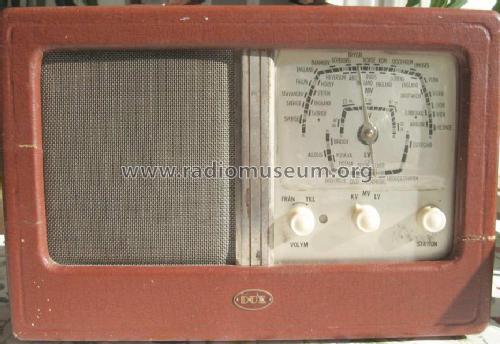

B48; Dux Radio AB; (ID = 496172) Radio
Dux Radio AB;: B48 [Radio] ID = 496172 933x642
Select picture or schematic to display from thumbnails on the right and click for download.
For model B48, Dux Radio AB; Stockholm

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DK40 DF91 DAF91 DAF91 DL41 DL41
Main principle Superhet, IF regeneration
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 90 & 1,5 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 15.5 cm = 6.1 inch
Power out
from Radiomuseum.org Model: B48 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 360 x 240 x 136 mm / 14.2 x 9.4 x 5.4 inch
Notes Anode voltage 90,0 and the filament 1,5 volts.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data -- Collector info (Sammler)

Model page created by Lars-G. Lundelin. See "Data change" for further contributors.
