Kamera B622T

Kamera B622T; Dux Radio AB; (ID = 1601760) Radio

Kamera B622T; Dux Radio AB; (ID = 1601762) Radio
Kamera B622T; Dux Radio AB; (ID = 1601731) Radio
Use red slider bar for more.

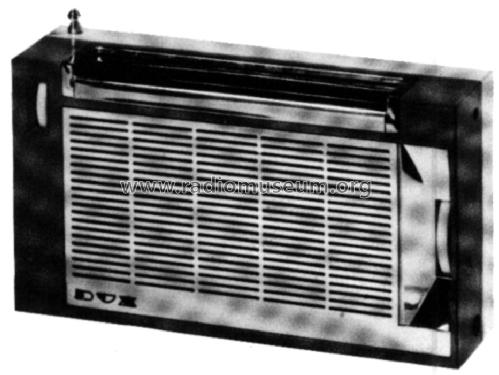

Kamera B622T; Dux Radio AB; (ID = 1601731) Radio
Dux Radio AB;: Kamera B622T [Radio] ID = 1601731 933x701
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kamera B622T, Dux Radio AB; Stockholm:
Aus den Hersteller-Unterlagen

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Kamera B622T - Dux Radio AB; Stockholm
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 171 x 98 x 43 mm / 6.7 x 3.9 x 1.7 inch
Net weight (2.2 lb = 1 kg) 0.650 kg / 1 lb 6.9 oz (1.432 lb)
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
