• Country
• Sweden

• Manufacturer / Brand
• Dux Radio AB; Stockholm

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345580

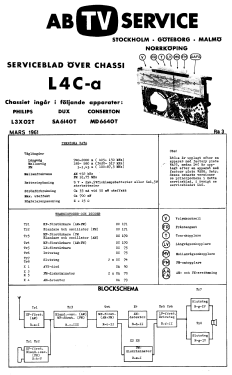

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• OC171 OC171 OC170 OC170 OC75 OC75 OC74 OC74 OA90 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4.5 or 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.7 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Lagun SA6140T Ch= L4C / Ch= L4C-a - Dux Radio AB; Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 175 x 90 mm / 10.2 x 6.9 x 3.5 inch

• Notes

• The radio has socket for external antenna.

  Case color: smokey gray/ivory or nougat/ivory.

  Chassis L4C is for radios with factory plate WA08 and chassis L4C-a is for factory plate WA25.

  The same chassis as Philips L3X02T and Conserton MD6640T.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Lars Nord. See "Data change" for further contributors.
