R41
Use red slider bar for more.

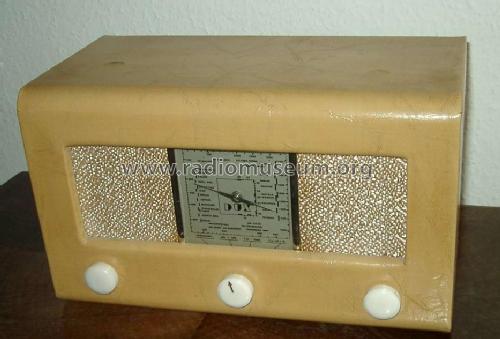

Dux Radio AB;: R41 [Radio] ID = 717502 933x634
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1941 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: DK21 DF22 DAC21 DL21 |
|---|
| Main principle | Super-Heterodyne (Super in general) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / 90 & 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch |
| Power out | |
| from Radiomuseum.org | Model: R41 - Dux Radio AB; Stockholm |
| Material | Leather / canvas / plastic - over other material |
| Shape | Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only). |
| Dimensions (WHD) | 340 x 425 x 200 mm / 13.4 x 16.7 x 7.9 inch |
Model page created by Thorsten Finaske. See "Data change" for further contributors.
