Drabant T-1661

Dux Radio AB; Stockholm

Data

Forum

Pictures

Collections

Country
Sweden

Manufacturer / Brand
Dux Radio AB; Stockholm

Year
1966

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
178621

Schematics

Drabant T-1661; Dux Radio AB; (ID = 1609377) Radio — Dux Radio AB; Drabant T-1661 (3)

Drabant T-1661; Dux Radio AB; (ID = 1609378) Radio — Dux Radio AB; Drabant T-1661 (3)

Drabant T-1661; Dux Radio AB; (ID = 795906) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795907) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795908) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795909) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795910) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795911) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 795912) Radio — Dux Radio AB; Drabant T-1661 (2)

Drabant T-1661; Dux Radio AB; (ID = 1609376) Radio — Dux Radio AB; Drabant T-1661 (2)
Aus den Hersteller-Unterlagen

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast, Long Wave and more than two Short Wave bands.

Power type and voltage
Line / Batteries (any type) / 9 / 6 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org

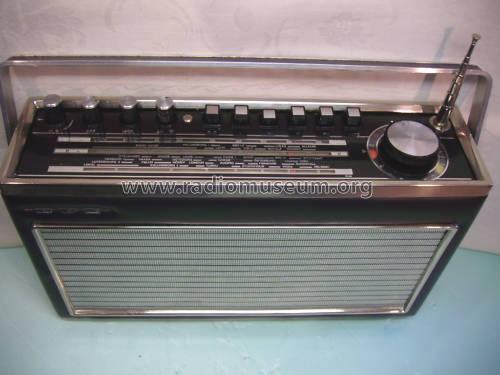

Model: Drabant T-1661 - Dux Radio AB; Stockholm

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
340 x 200 x 90 mm / 13.4 x 7.9 x 3.5 inch

Notes
Mit dem UKW - Selektomat lassen sich 3 Sender mechanisch markieren. Empfang von LW/KW/MW/UKW (87,5 - 104 MHz). Getrennte Klangreglung von Höhen und Tiefen. AFC schaltbar. Schaltbare Skalenbeleuchtung. Seitlich Buchsen für Antenne, Aufnahme/Wiedergabe, Lautsprecher/Kopfhörer. Auf der Rückseite Buchsen für ein externes Netzteil.

Source of data
-- Original-techn. papers.

Author
Model page created by Philip Obetsanov. See "Data change" for further contributors.
