Echocord Super S 61

Echocord Super S 61; Dynacord W. (ID = 33072) Ampl/Mixer
Echocord Super S 61; Dynacord W. (ID = 110152) Ampl/Mixer Echocord Super S 61; Dynacord W. (ID = 110154) Ampl/Mixer
Echocord Super S 61; Dynacord W. (ID = 110155) Ampl/Mixer Echocord Super S 61; Dynacord W. (ID = 110156) Ampl/Mixer
Echocord Super S 61; Dynacord W. (ID = 110157) Ampl/Mixer Echocord Super S 61; Dynacord W. (ID = 513750) Ampl/Mixer
Echocord Super S 61; Dynacord W. (ID = 513751) Ampl/Mixer Echocord Super S 61; Dynacord W. (ID = 513754) Ampl/Mixer
Echocord Super S 61; Dynacord W. (ID = 513757) Ampl/Mixer Echocord Super S 61; Dynacord W. (ID = 513758) Ampl/Mixer
Use red slider bar for more.
Echocord Super S 61; Dynacord W. (ID = 110152) Ampl/Mixer

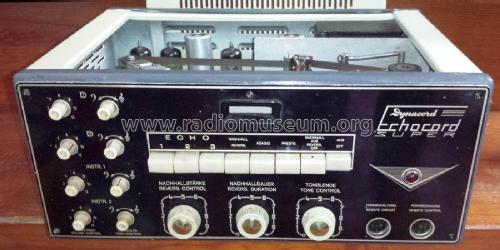

Dynacord W.: Echocord Super S 61 [Ampl/Mixer] ID = 110152 933x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echocord Super S 61, Dynacord (W. Pinternagel); Straubing

Country:  Germany
Manufacturer / Brand:  Dynacord (W. Pinternagel); Straubing
Year: 1961/1962 Category: Audio Amplifier or -mixer
Valves / Tubes 7: ECC83 ECC83 ECC83 ECC83 EM84 ECC83 ECC82
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110,130,160, 220, 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Echocord Super S 61 - Dynacord W. Pinternagel;
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 320 x 140 x 240 mm / 12.6 x 5.5 x 9.4 inch
Notes Integriertes 4-Kanal-Mischpult zum Anschluss von 2 Mikros sowie 2 Instrumenten. 3 Aufnahmeköpfe, 2 Wiedergabeköpfe, ein Löschkopf. 2 Geschwindigkeite, 22/44 cm/sek.
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Peter Böhm. See "Data change" for further contributors.
