• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1960–1965

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 129275

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• EF86 EF86 EF86 ECC83 EM84 ECF83 ECC81 EL34 EL34 EL34 EL34 GZ34 GZ34 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 260 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

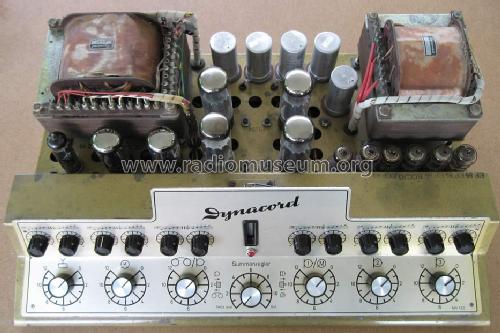

• Model: MV120 [EL34] - Dynacord W. Pinternagel;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 230 x 365 mm / 20.5 x 9.1 x 14.4 inch

• Notes
• 2. Version des MV120 mit geändertem Röhrensatz ab 1960, Dauerleistung 120 W, Spitzenleistung 160 W.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Walter Groer. See "Data change" for further contributors.
