CRT Restorer/Analyzer 467
B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA
- Land
- USA
- Hersteller / Marke
- B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA
- Jahr
- 1974 ?
- Kategorie
- Service- oder Labor-Ausrüstung
- Radiomuseum.org ID
- 143961
-
- anderer Name: B&K Manufacturing Company
Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 1
- Röhren
- 12BH7A
- Anzahl Transistoren
- 10
- Wellenbereiche
- - ohne
- Betriebsart / Volt
- Wechselstromspeisung / 117/234 Volt
- Lautsprecher
- - - Kein Ausgang für Schallwiedergabe.
- von Radiomuseum.org
- Modell: CRT Restorer/Analyzer 467 - B&K Precision, Dynascan Corp.,
- Form
- Tischmodell, Zusatz nicht bekannt - allgemein.
- Abmessungen (BHT)
- 342 x 110 x 255 mm / 13.5 x 4.3 x 10 inch
- Bemerkung
-
The transistors listed occur more than once. As well as the transistors and I.C.s, there are 20 silicon rectifiers, 10 silicon diodes, one germanium diode and 8 zener diodes.
- For Q8, Q9, and Q10 can be used also the transistor PN3643
- Nettogewicht
- 4 kg / 8 lb 13 oz (8.811 lb)
- Autor
- Modellseite von Jürgen Daub angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
- Weitere Modelle
-
Hier finden Sie 112 Modelle, davon 108 mit Bildern und 44 mit Schaltbildern.
Alle gelisteten Radios usw. von B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA
Sammlungen
Das Modell CRT Restorer/Analyzer befindet sich in den Sammlungen folgender Mitglieder.
Forumsbeiträge zum Modell: B&K Precision,: CRT Restorer/Analyzer 467
Threads: 1 | Posts: 5

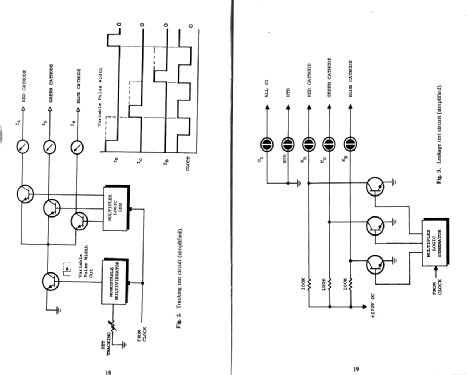

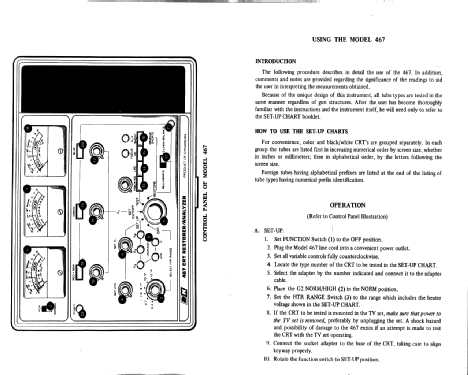

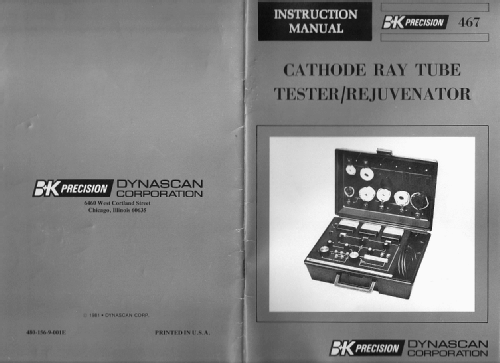

I have the manual for this equipment and have scanned it the best i can. Compressing the pages to 300kB files is no problem when using JPEG. As soon as i try to save the pages as PNG the file size explodes to 1MB and more. PNG compression setting in IrFanview is set to 9. I tried many other features to reduce size: converting to grayscale, resize etc. How do i upload the manual ?
I also have the tube chart, i haven't even started to scan the document out of frustration...
Patrick Marinus, 22.May.13
