Elite TP41
Dynatron Radio Ltd., Maidenhead, Berkshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dynatron Radio Ltd., Maidenhead, Berkshire
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 305867
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / PP9: 2 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Elite TP41 - Dynatron Radio Ltd.,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12 x 7 x 3.5 inch / 305 x 178 x 89 mm
- Notes
-

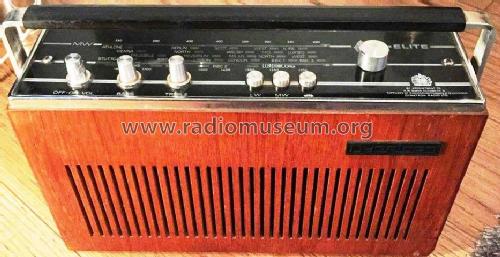

A battery powered two band AM portable 8 transistor radio covering MW (185 - 570 metres) and LW (1100 - 2000 metres), housed in a teak veneered wooden cabinet. A special feature is the inclusion of switched matching aerial sections when reception is via a car aerial. Sockets for car aerial and earphone. Elliptical loudspeaker 7 x 4 inch. Transistors 1, 2 and 3 are housed in a Mullard LP1156 IF module .
It has the same chassis as the Dynatron TP40 Elite model which is housed in a black rexine covered wooden cabinet.
- Mentioned in
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1935 dated 1 May 1970)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
