• Country
• Great Britain (UK)

• Manufacturer / Brand
• Dynatron Radio Ltd., Maidenhead, Berkshire

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84536

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• XA102 XA101 XA101 XB102 XB103 XC131 XC131

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 2 × 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

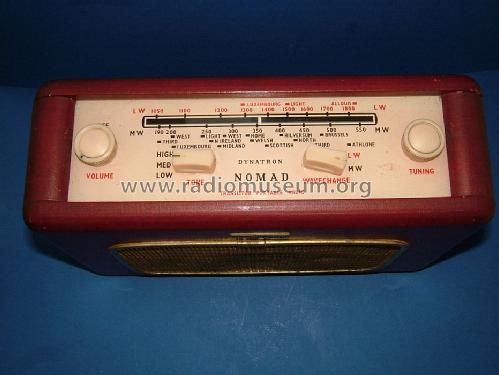

• Model: Nomad TP11 - Dynatron Radio Ltd.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 8.5 x 4.5 inch / 305 x 216 x 114 mm

• Notes
• .

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Literature/Schematics (1)
• - - Data from my own collection

• Literature/Schematics (2)

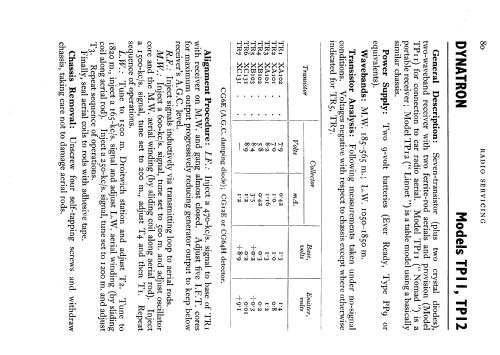

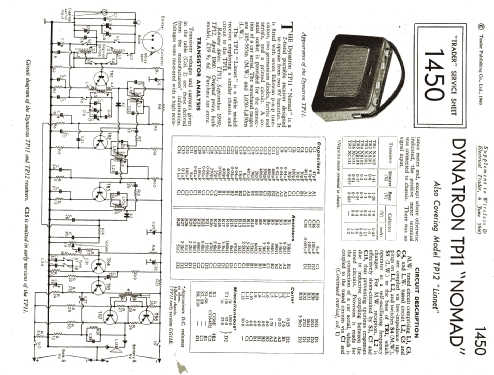

• Trader sheet 1450

• Other Models

• Here you find 123 models, 78 with images and 46 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
