Rebecca coaxial antenna switch Type 78A
Dynatron Radio Ltd., Maidenhead, Berkshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dynatron Radio Ltd., Maidenhead, Berkshire
- Year
- 1943 ?
- Category
- Military Equipment (not Re, Tr or RXT)
- Radiomuseum.org ID
- 304298
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Direct Current supply (DC) / 24 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Rebecca coaxial antenna switch Type 78A - Dynatron Radio Ltd.,
- Dimensions (WHD)
- 170 x 185 x 65 mm / 6.7 x 7.3 x 2.6 inch
- Notes
-

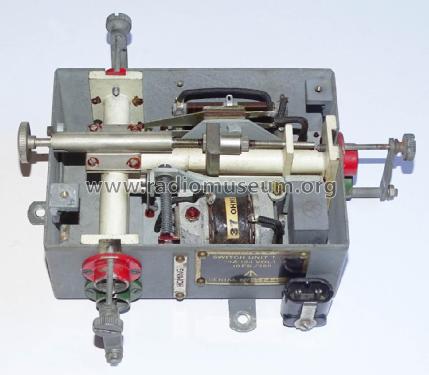

Heavy duty dual-circuit coaxial switch unit designed for selecting long range or homing antennas for Rebecca Mk IIB/IIT VHF transponder navigation system. (173 - 234 MHz)
Manual or electrical operation (24v DC).
Operating current 650 mA. After pull-in, contacts connect a 100 ohm resistor in series with the solenoid, reducing the holding current to 170 mA.
Handles the 300 W peak power output of the Rebecca transmitter.
6 Pye coaxial sockets with clamps.
Wick armature pivot lubrication.
Removable cover plate for contact inspection and cleaning.
