Windsor RG22
Dynatron Radio Ltd., Maidenhead, Berkshire
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Dynatron Radio Ltd., Maidenhead, Berkshire
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174052
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 2 W (unknown quality)
- from Radiomuseum.org
- Model: Windsor RG22 - Dynatron Radio Ltd.,
- Notes

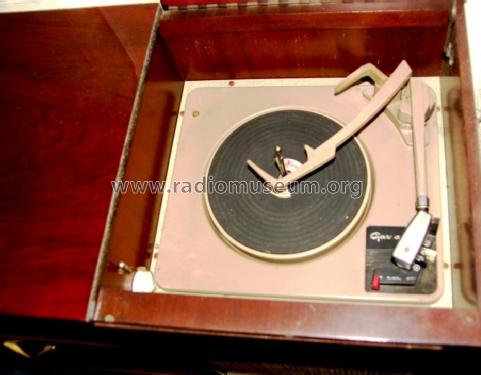

- Stereo radiogram (mono radio) fitted with Garrard "Auto-Slim" record unit. Same chassis as model RG23.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
