Chakophone No.3

Chakophone No.3; Eagle Engineering (ID = 225733) Crystal Chakophone No.3; Eagle Engineering (ID = 225740) Crystal
Chakophone No.3; Eagle Engineering (ID = 225746) Crystal
Use red slider bar for more.

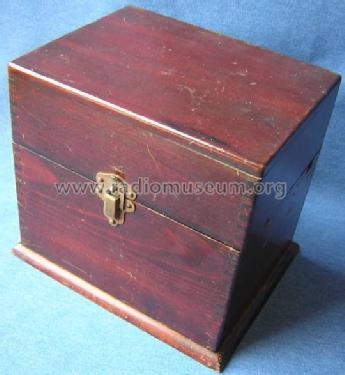

Chakophone No.3; Eagle Engineering (ID = 225733) Crystal
Eagle Engineering: Chakophone No.3 [Crystal] ID = 225733 541x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Chakophone No.3, Eagle Engineering (see also Eagle Electrical):
eBay seller: onlinecollectables-uk (UK). #6636184171

Country:  Great Britain (UK)
Manufacturer / Brand:  Eagle Engineering (see also Eagle Electrical)
alternative name

Eagle Wireless Supply
Brand
Chakophone
Year: 1923 ? Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Chakophone No.3 - Eagle Engineering see also
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 8.5 x 8 x 6.5 inch / 216 x 203 x 165 mm
Notes 200-600 metres. GPO No.332;
Price in first year of sale 4.75 GBP
Mentioned in Tickling the Crystal; Sanders

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
