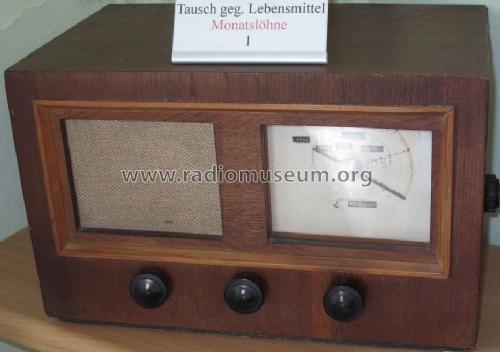

3/45 GW; EAK, Elektro- (ID = 1717526) Radio 3/45 GW; EAK, Elektro- (ID = 1717952) Radio
Use red slider bar for more.

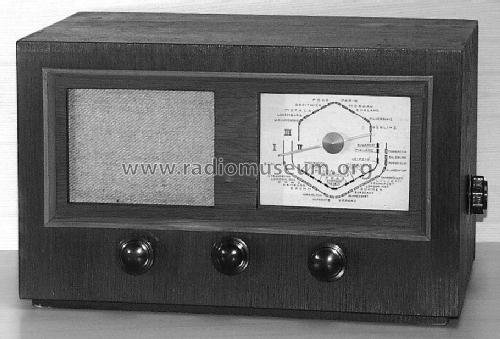

3/45 GW; EAK, Elektro- (ID = 1717526) Radio
EAK, Elektro-: 3/45 GW [Radio] ID = 1717526 910x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3/45 GW, EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg):
Aus Hersteller-Prospekt

Country:  Germany
Manufacturer / Brand:  EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RV12P2000 RV12P2000 RV12P2000
Semiconductors (the count is only for transistors) Selen
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 3/45 GW - EAK, Elektro-Apparatefabrik
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Variante von diesem Einkreiser.

Mentioned in -- Original prospect or advert

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
