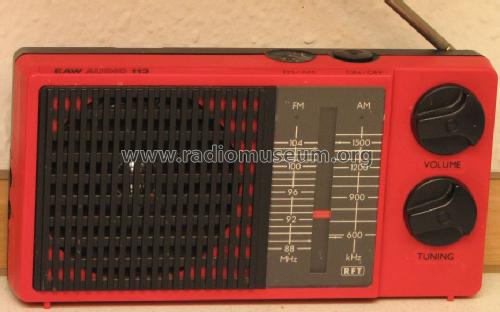

Audio 113; EAW, Elektro- (ID = 1057688) Radio
EAW, Elektro-: Audio 113 [Radio] ID = 1057688 933x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio 113, EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.):
privater Gebrauchsgegenstand, am 21.07.1988 für 380,00 DDR-Mark gekauft und seit dem bis heute jeden Tag in Benutzung

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: SF235 SF235 SC236 A283D A210E SAY30
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Audio 113 - EAW, Elektro-Apparate-Werke,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 110 x 45 mm / 8.7 x 4.3 x 1.8 inch

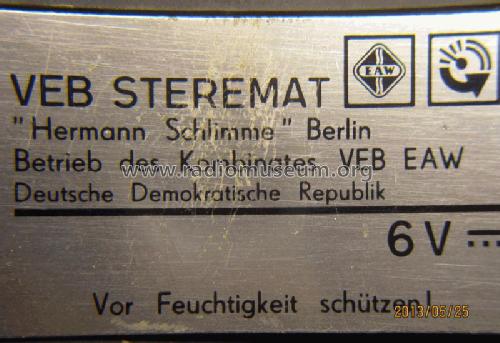

Notes Mischbestückung Transistoren und IS; Anschluß für ext. Netzteil Das Gerät wurde auch bei Steremat, einem Kombinatsbetrieb von EAW gefertigt.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 350.00 Mark
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Bernd Pötzsch. See "Data change" for further contributors.



All listed radios etc. from EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
Here you find 85 models, 75 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
