Sound Solo RM1 OIRT

Sound Solo RM1; EAW, Elektro- (ID = 2043713) Radio
Sound Solo RM1; EAW, Elektro- (ID = 1371151) Radio Sound Solo RM1; EAW, Elektro- (ID = 1371152) Radio
Sound Solo RM1; EAW, Elektro- (ID = 2043714) Radio
Use red slider bar for more.
Sound Solo RM1; EAW, Elektro- (ID = 1371151) Radio
EAW, Elektro-: Sound Solo RM1 [Radio] ID = 1371151 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sound Solo RM1 OIRT, EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.):
Foto: Josef Tinka, Tschechien. Vielen Dank !

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SF235 SF235 SF225 SC239 SC236 SC236 A210K A281D
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/ 6x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (undistorted)
from Radiomuseum.org Model: Sound Solo RM1 [OIRT] - EAW, Elektro-Apparate-Werke,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 160 x 80 mm / 10.4 x 6.3 x 3.1 inch
Notes

Export-Gerät mit FM-OIRT-Bereich, AFC sowie LW, MW und KW 5,9 ... 12 MHz (49 ... 25 m), Kurzwellenlupe, LED-Abstimmanzeige.
Eingebautes Netzteil für 220 V~, Anschlüsse für TA/TB, Zusatzlautsprecher und Außenantenne. Erhöhte Ausgangsleistung (2,5 W) bei Netzbetrieb.
Dynam. Ovallautsprecher L6011 (alternativ ein Unitra-Lautsprecher bestückt , Klang allerdings schlechter).

Siehe auch Modell mit FM-CCIR-Bereich.

Net weight (2.2 lb = 1 kg) 2.050 kg / 4 lb 8.2 oz (4.515 lb)
Collectors' prices

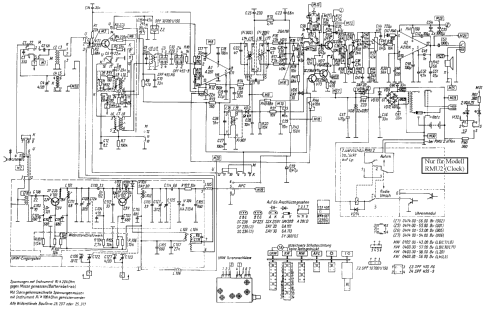

Source of data -- Schematic

Model page created by Wolfgang Lill. See "Data change" for further contributors.
