Simonetta

Simonetta ; QUELLE GmbH (ID = 559593) R-Player Simonetta ; QUELLE GmbH (ID = 559597) R-Player
Use red slider bar for more.
Simonetta ; QUELLE GmbH (ID = 559593) R-Player

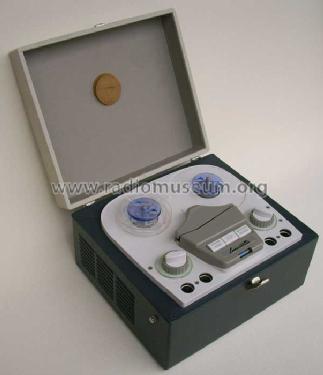

QUELLE GmbH: Simonetta [R-Player] ID = 559593 604x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Simonetta, QUELLE GmbH (Universum); Fürth und Nürnberg

Country:  Germany
Manufacturer / Brand:  QUELLE GmbH (Universum); Fürth und Nürnberg
Year: 1965 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: DM71
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Storage and/or dry batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Simonetta - QUELLE GmbH Universum; Fürth
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 150 x 230 mm / 10.2 x 5.9 x 9.1 inch
Notes

Geschwindigkeit 9,5 cm/sec,
Handaussteuerung, Spulengröße 10 cm,
4 Anschlüsse: Mikro, Radio, Platte, Netzteil,
die Spulen können angeschraubt werden.

Fertigung bei Eben, Dachau, für Quelle Versand.

Model page created by Dieter Erdmann. See "Data change" for further contributors.
