- Country
- Hungary
- Manufacturer / Brand
- Echo, Vörös Rezső okl. gépészmérnök Rádiólaboratóriuma; Budapest
- Year
- 1941–1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123996
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 13 cm = 5.1 inch
- from Radiomuseum.org

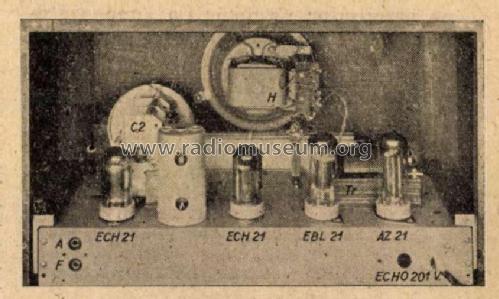

- Model: 201V - Echo, Vörös Rezső okl. gépészm
- Notes
-
Speaker: Hegra D1
- Mentioned in
- Rádió Technika 1947.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
