• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1962 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 185348

• • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC83 ECC83 ECC83 EL34 EL34 GZ34

• Number of Transistors

• Semiconductors
• E80C50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

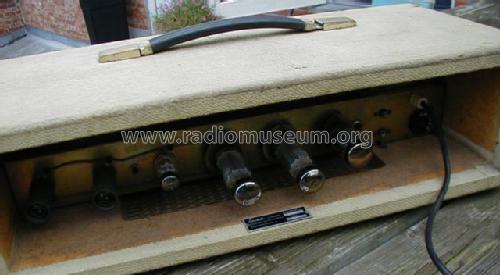

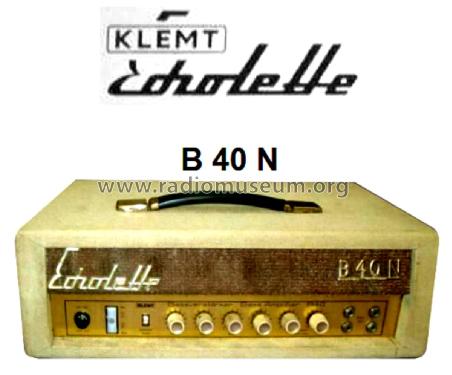

• Model: Echolette B40N - Echolette Marke / brand;

• Shape
• Tablemodel, low profile (big size).

• Notes
• Musiker-Verstärker.

• Mentioned in
• -- Schematic (Technische Daten, Info aus Echolette HiFi-Archiv)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
