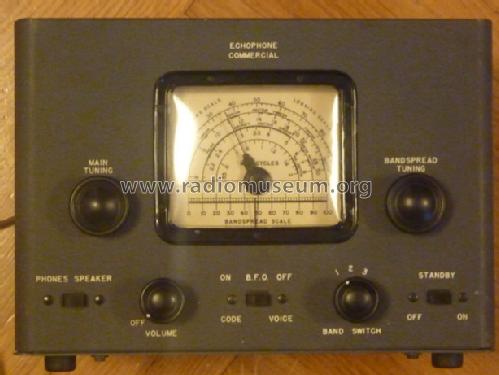

Echophone Radio, Inc: EC1 [Radio] ID = 908123 900x734

Select picture or schematic to display from thumbnails on the right and click for download.

For model EC1, Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.

Country:

United States of America (USA)

Manufacturer / Brand:

Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.

Brand

Ufonic

Year: 1940 perfect model

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

6: 12K8 12SK7 12SQ7 35L6GT 12J5GT 35Z5GT

Main principle	to an article Superheterodyne (common); ZF/IF 455 kHz
Wave bands	Broadcast plus 2 Short Wave bands.
Details
Power type and voltage	AC/DC-set / 117 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org	Model: EC1 - Echophone Radio, Inc. - see
Material	Metal case
Shape	Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD)	12 x 12 x 8.4 inch / 305 x 305 x 213 mm
Notes	Three bands covering 550 kHz to 30 MHz. Bandspread; BFO. See also the assembly from APCO, Switzerland, as Echophone EC-1 A/B Skyrider Jr. It is to compare with the Hallicrafters Skyrider Jr. S-41G. The real story between these models has probably still to be detected and told.
Net weight (2.2 lb = 1 kg)	4.850 kg / 10 lb 10.9 oz (10.683 lb)
Price in first year of sale	20.00 $
External source of data	Ernst Erb
Source of data	Guide to Old Radios
Circuit diagram reference	Rider's Perpetual, Volume 14 = 1944 = before 1943

All listed radios etc. from Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.
Here you find 83 models, 38 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Alexander Gopkalo (UA)

Collection of Gary Brandenburger (USA)

Collection of Sinisa Trlin (HR)

Collection of James Surprenant (USA)

Forum contributions about this model

Echophone Radio, Inc: EC1

Threads: 2 | Posts: 2

Hits: 1058 Replies: 0

echophone: Échophone EC-1.

Gérard Pardoel
28.Jul.15

echophone: Échophone EC-1.

Bonjour à tous, je viens de m'inscrire sur votre site, et j'espère que je pourrais partager vos expériences en radio avec les miennes. Pour commencer voici un lien concernent l'Echophone EC-1, l'auteur explique comment remettre en êtat cet appareil, attention !!! la vidéo sur YouTube dure environ deux heures et demi.

Avec votre navigateur allez sur Youtube, dans la barre de recherche de Youtube utilisez cet ensemble de mots clés ...

"Echophone EC-1 Tube Radio Restoration with Alignment Procedure"

TTg'

Hits: 3207 Replies: 0 echophone: EC1;
Konrad Birkner † 12.08.2014 08.Mar.04	1 echophone: EC1; Superhet; BFO; Metallgehäuse; 115V Allstrom; eingeb. Lautsprecher; 6 Röhren: 12K8 / 12SK7 / 12SQ7 / 12J5 / 35L6 / 35Z5 ; Originalpreis $19,95
