Echophone-Super 645

Echophone-Super 645; Echophone, Marke ab (ID = 1469535) Radio Echophone-Super 645; Echophone, Marke ab (ID = 974994) Radio
Use red slider bar for more.

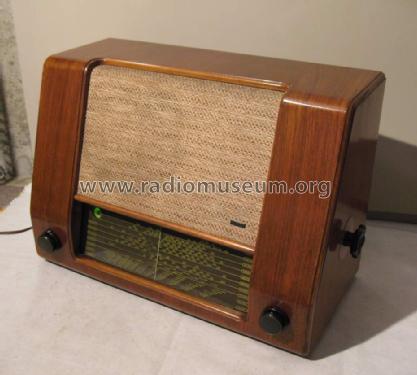

Echophone-Super 645; Echophone, Marke ab (ID = 1469535) Radio
Echophone, Marke ab: Echophone-Super 645 [Radio] ID = 1469535 930x836
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echophone-Super 645, Echophone, Marke (ab 1937) von Apco AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Echophone, Marke (ab 1937) von Apco AG; Zürich
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM4 AZ21
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: Echophone-Super 645 - Echophone, Marke ab 1937 von
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes 7 gedehnte KW-Bänder. Geschlossene Spulen-Trommel.
Gemäss Werbung Hofrela-Fabrikat.
Preis CHF 800.-- Gehäuse mattiert, CHF 820.-- Gehäuse poliert.
25 cm-Lautsprecher Luxor-Concert
Price in first year of sale 800.00 CHF
Source of data -- Original prospect or advert
Literature/Schematics (1) Radio Service, 01/02, 1945

Model page created by Walter Haring. See "Data change" for further contributors.
