S-5 (S-5 Rev.) 8 Tubes

S-5 ; Echophone Radio, Inc (ID = 746680) Radio

S-5 ; Echophone Radio, Inc (ID = 811635) Radio
S-5 ; Echophone Radio, Inc (ID = 820313) Radio S-5 ; Echophone Radio, Inc (ID = 329724) Radio
S-5 ; Echophone Radio, Inc (ID = 329728) Radio S-5 ; Echophone Radio, Inc (ID = 329727) Radio
S-5 ; Echophone Radio, Inc (ID = 329726) Radio S-5 ; Echophone Radio, Inc (ID = 329729) Radio

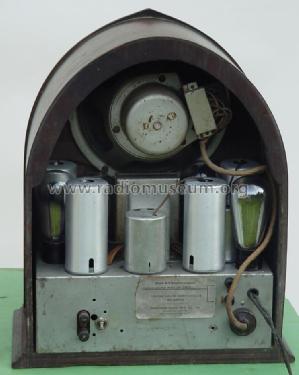

S-5 ; Echophone Radio, Inc (ID = 820314) Radio S-5 ; Echophone Radio, Inc (ID = 719521) Radio
S-5 ; Echophone Radio, Inc (ID = 1709137) Radio S-5 ; Echophone Radio, Inc (ID = 1709138) Radio
Use red slider bar for more.
S-5 ; Echophone Radio, Inc (ID = 820313) Radio
Echophone Radio, Inc: S-5 [Radio] ID = 820313 804x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-5 (S-5 Rev.) 8 Tubes, Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.:
Knobs are replacements

Country:  United States of America (USA)
Manufacturer / Brand:  Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.
Brand

Ufonic
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 24A 24A 27 24A 24A 45 45 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: S-5 [8 Tubes] - Echophone Radio, Inc. - see
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 360 x 440 x 190 mm / 14.2 x 17.3 x 7.5 inch
Notes Reference for the date: "Los Angeles Radio Manufacturing" by Floyd A. Paul. (1988), page 13: shows that in Autumn 1930, Echophone moved at least the production from Hollywood to Illinois and for December show in a service manual from December 1930 the chassis of S-3, S-4, S-5 and F. The schematic diagram of S-3 has a date of 9-5-30. For S-5 there is also the 7 tube version having a Dynatron oscillator/mixer.
Net weight (2.2 lb = 1 kg) 10.3 kg / 22 lb 11 oz (22.687 lb)
Price in first year of sale 70.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965 (Radio College of Canada - Echophone Page 1)
Literature/Schematics (1) Machine Age to Jet Age II
Literature/Schematics (2) Cathedral & Tombstone Radios


All listed radios etc. from Echophone Radio, Inc. - see also (The) Radio Shop or Hallicrafters Inc.
Here you find 83 models, 38 with images and 44 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Echophone Radio, Inc: S-5
Threads: 1 | Posts: 4
Hits: 1760     Replies: 3
echophone: ; S-5 (S-5 Rev.)
Alan Scott Douglas † 16.11.15
15.Sep.10
  1

The introductory price in March 1931 was $69.50, and the name of the company at that time was Echophone Radio Mfg. Co. Ltd, according to advertisements in both "Radio" and "Radio Retailing" for March 1931.

Garrett Walsh
17.Dec.14
  2

 Hi Alan,    I just thought you would like to know that I have a radio from Argentina that is almost  an identical copy of your Echophone radio. It is from 1932. It is a Comodoro model G-9. The tube line up is different and it runs on 220 volts. I found it at a flea market for $50.00. It looks like it was built in the USA, but exported to Argentina by Charles Thornton and co ltd. I have a copy of the original ad of the radios that the Thornton co. distributed back in the day.

Garrett Walsh
17.Dec.14
  3

Hi again Alan, I have an update on the radio. The tube line up is 57, 58, 57, 47, 80. The serial number is 34017.  It was Evans, Thornton and Co. Defensa 477 Buenis Aries, Argentina that handled radio distribution.

Alan Scott Douglas † 16.11.15
18.Dec.14
  4

Thank you; information on export models is hard to find, since they were rarely mentioned and never advertised here.
