Croyden Consolette 534

Eclipse Radio Pty. Ltd.; Melbourne

  • Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 211418
    • alternative name: Electronic Industries Ltd

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Croyden Consolette 534 - Eclipse Radio Pty. Ltd.;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 11 x 16.75 x 7.5 inch / 279 x 425 x 191 mm
  • Notes
  • This radio is in an unusual cabinet that looks like a console but is quite small.

    Midget console style cabinet design like the Emmco M455.

  • Mentioned in

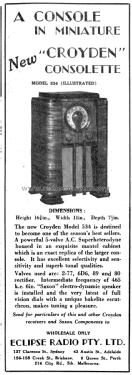

  • Radio & Electrical Merchant 12/7/35 P13.
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
