• Country
• Australia

• Manufacturer / Brand
• Eclipse Radio Pty. Ltd.; Melbourne

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188020

• • alternative name: Electronic Industries Ltd

Click on the schematic thumbnail to request the schematic as a free document.

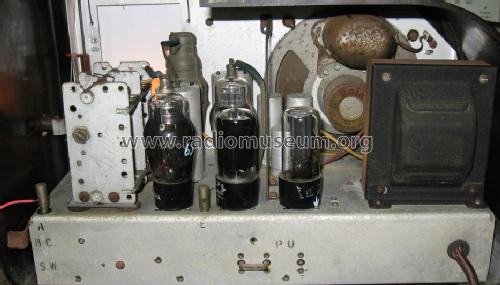

• Number of Tubes
• 5

• Valves / Tubes
• 6J8G or 6J8GA 6U7G 6B6G 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 220-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Monarch DKJ - Eclipse Radio Pty. Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 396 x 242 x 203 mm / 15.6 x 9.5 x 8 inch

• Price in first year of sale
• 29.00 Aus£

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VII

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
