• Year
  • 1946–1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 185158
    • alternative name: Electronic Industries Ltd

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-220; 220-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Monarch DKL - Eclipse Radio Pty. Ltd.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 289 x 186 x 175 mm / 11.4 x 7.3 x 6.9 inch
  • Notes

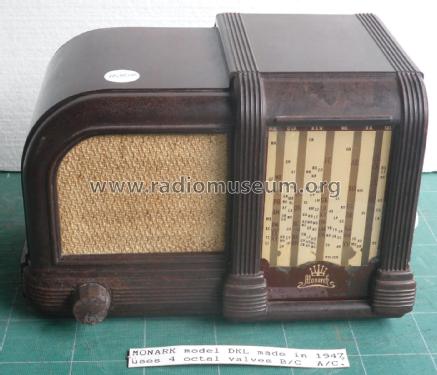

  • Available in different colours. The "walnut" version was £0/9/6 less than the price for the brightly coloured versions shown below.
  • Price in first year of sale
  • 18.00 Aus£
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VI
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
