Peter Pan FKM with 6AD8 valve.

Peter Pan FKM; Eclipse Radio Pty. (ID = 2018113) Radio

Peter Pan FKM; Eclipse Radio Pty. (ID = 2018114) Radio

Peter Pan FKM; Eclipse Radio Pty. (ID = 2018115) Radio
Peter Pan FKM; Eclipse Radio Pty. (ID = 2429385) Radio Peter Pan FKM; Eclipse Radio Pty. (ID = 2429386) Radio
Use red slider bar for more.
Peter Pan FKM; Eclipse Radio Pty. (ID = 2429385) Radio

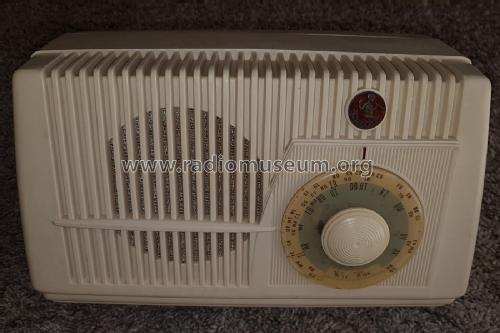

Eclipse Radio Pty.: Peter Pan FKM [Radio] ID = 2429385 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Peter Pan FKM with 6AD8 valve., Eclipse Radio Pty. Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Eclipse Radio Pty. Ltd.; Melbourne
alternative name

Electronic Industries Ltd
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6AD8 6V6GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 221-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Peter Pan FKM [with 6AD8 valve.] - Eclipse Radio Pty. Ltd.;
Material Moulded (Bakelite or Plastics)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Notes

Electrically identical to Astor Mickey QK.

Colours available in Walnut, Cream & Green.

Price in first year of sale 23.46 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XI
Literature/Schematics (1) - - Manufacturers Literature (Peter Pan Technical Bulletin FKM-3, 12/3/1952.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 11, 1953, Page 226.)
