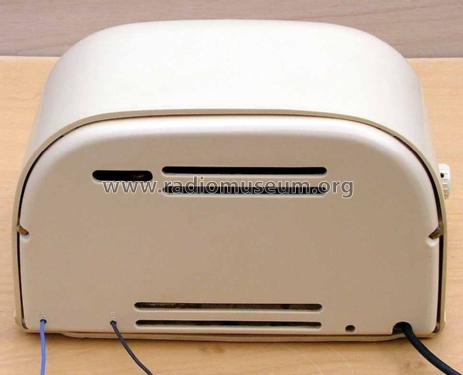

Peter Pan HKM 50 Hz version.
Use red slider bar for more.
Eclipse Radio Pty.: Peter Pan HKM [Radio] ID = 1513401 933x760
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Electronic Industries Ltd | ||||
|---|---|---|---|---|---|
| Year: 1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: 6J8G or 6J8GA 6B8G 6V6GT 6X5GT |
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 200-220; 220-250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm |
| Power out | |
| from Radiomuseum.org | Model: Peter Pan HKM [50 Hz version.] - Eclipse Radio Pty. Ltd.; |
| Material | Bakelite or Plastics (type unknown) |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Circuit diagram reference | Australian Official Radio Service Manual Vol. IX |
Model page created by Stuart Irwin. See "Data change" for further contributors.
All listed radios etc. from Eclipse Radio Pty. Ltd.; Melbourne
Here you find 222 models, 54 with images and 111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
