All World Six 710/B (S710) (S710B)

All World Six 710/B ; Eddystone, (ID = 530551) Commercial Re

All World Six 710/B ; Eddystone, (ID = 530552) Commercial Re

All World Six 710/B ; Eddystone, (ID = 530553) Commercial Re

All World Six 710/B ; Eddystone, (ID = 530554) Commercial Re

All World Six 710/B ; Eddystone, (ID = 530555) Commercial Re
Use red slider bar for more.
All World Six 710/B ; Eddystone, (ID = 530551) Commercial Re

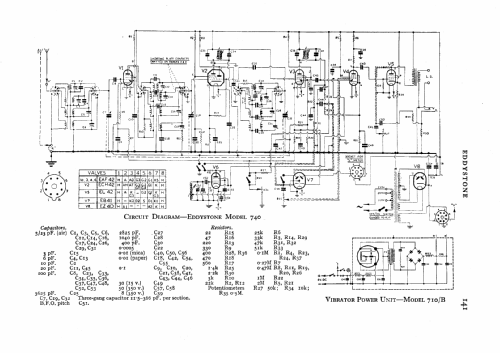

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1949 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 6: EAF42 ECH42 EAF42 EAF42 EL42 EL42
Main principle Superhet with RF-stage; ZF/IF 450 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Storage and/or dry batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: All World Six 710/B - Eddystone, Birmingham
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 426 x 222 x 254 mm / 16.8 x 8.7 x 10 inch
Notes General coverage receiver, 480 kHz - 30,6 MHz in four bands (480-1460kHz; 1,4-3,8MHz; 3,7-10,6MHz; 10,5-30,6MHz). AM only.
Battery powered, integrated vibra-pack, matching 687 6V accumulator.
In some models, spare dial glasses from 659 have been used, they are marked "All wWorld Six" in the left upper corner.
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 39.00 GBP
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Eddystone User Group: Quick Reference Guide

Model page created by Martin Bösch. See "Data change" for further contributors.
