EA-12

EA-12; Eddystone, (ID = 355396) Amateur-R

EA-12; Eddystone, (ID = 355397) Amateur-R

EA-12; Eddystone, (ID = 2298226) Amateur-R

EA-12; Eddystone, (ID = 2298227) Amateur-R

EA-12; Eddystone, (ID = 2298228) Amateur-R

EA-12; Eddystone, (ID = 2298229) Amateur-R

EA-12; Eddystone, (ID = 2298543) Amateur-R

EA-12; Eddystone, (ID = 2298544) Amateur-R

EA-12; Eddystone, (ID = 2298546) Amateur-R

EA-12; Eddystone, (ID = 2298548) Amateur-R
EA-12; Eddystone, (ID = 2302651) Amateur-R EA-12; Eddystone, (ID = 2302671) Amateur-R
EA-12; Eddystone, (ID = 1925585) Amateur-R EA-12; Eddystone, (ID = 1335123) Amateur-R
EA-12; Eddystone, (ID = 2298658) Amateur-R EA-12; Eddystone, (ID = 2298659) Amateur-R
EA-12; Eddystone, (ID = 2312617) Amateur-R
Use red slider bar for more.

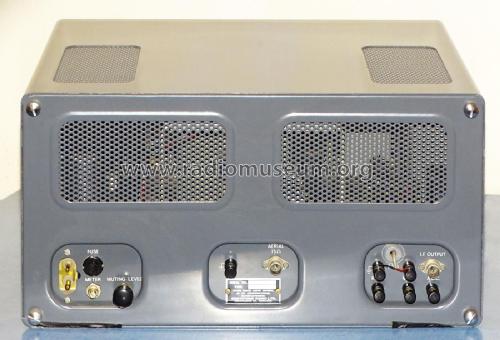

EA-12; Eddystone, (ID = 2302651) Amateur-R
Eddystone,: EA-12 [Amateur-R] ID = 2302651 1400x856
Select picture or schematic to display from thumbnails on the right and click for download.
For model EA-12, Eddystone, Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1964–1969 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 12: ECC189 ECH81 EC90 ECH81 EC90 EF93 EF93 EB91 ECC83 EK90 EL90 150C2 EF94
Main principle Superhet, double/triple conversion; ZF/IF 1400/100 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 100-125 / 200-250 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EA-12 - Eddystone, Birmingham
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 425 x 222 x 346 mm / 16.7 x 8.7 x 13.6 inch
Notes Amateur band receiver covering 160 - 10m ham bands (1,8-2,4 / 3,4-4 / 6,9-7,5 / 13,9-14,5 / 20,9-21,5 / 27,9-28,5 / 28,4-29 / 28,9-29,5 / 29,4-30 MHz); AM, SSB (BFO);
S-meter, crystal filter, CW audio filter.
US tube layout: 6ES8 6AJ8 6C4 6AJ8 6C4 6BA6 6BA6 6AL5 12AX7 6BE6 6AQ5 0A2 6AU6, five silicon diodes (noise limiter / noise clipper / rectifier).
Net weight (2.2 lb = 1 kg) 22.2 kg / 48 lb 14.4 oz (48.899 lb)
Price in first year of sale 178.00 GBP
Source of data -- Original-techn. papers.
