EC-10

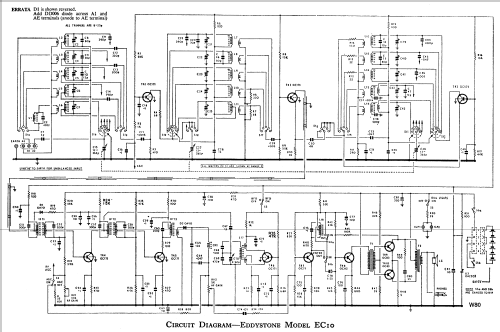

EC-10; Eddystone, (ID = 809027) Receiver-C

EC-10; Eddystone, (ID = 809028) Receiver-C

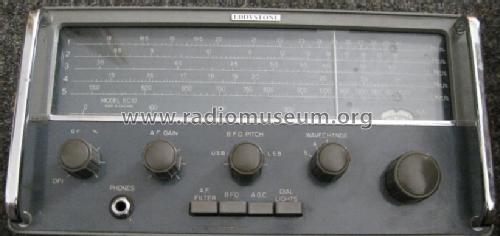

EC-10; Eddystone, (ID = 219731) Receiver-C EC-10; Eddystone, (ID = 633020) Receiver-C

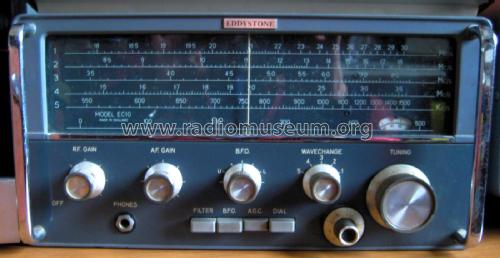

EC-10; Eddystone, (ID = 633021) Receiver-C EC-10; Eddystone, (ID = 1779206) Receiver-C

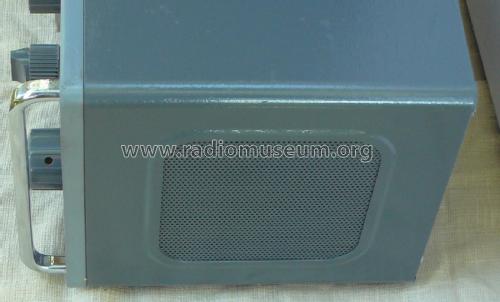

EC-10; Eddystone, (ID = 1852453) Receiver-C EC-10; Eddystone, (ID = 1852454) Receiver-C

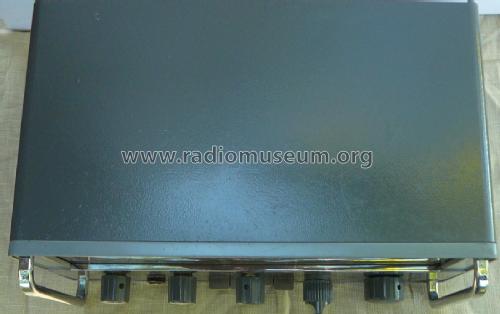

EC-10; Eddystone, (ID = 1852455) Receiver-C
Use red slider bar for more.
EC-10; Eddystone, (ID = 219731) Receiver-C
Eddystone,: EC-10 [Receiver-C] ID = 219731 320x240
Select picture or schematic to display from thumbnails on the right and click for download.
For model EC-10, Eddystone, Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  Eddystone, Birmingham
alternative name

Stratton & Co.Ltd.; Birmingham
Year: 1964–1970 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) 10: OC171 OC171 OC171 OC171 OC171 OC171 OC71 OC83 OC83 OC83
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: EC-10 - Eddystone, Birmingham
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 317 x 162 x 203 mm / 12.5 x 6.4 x 8 inch
Notes coverage 550 kHz - 30 MHz, AM, CW (BFO); optional 924 mains power supply, optional 945 12/24V DC power supply.
Net weight (2.2 lb = 1 kg) 5.8 kg / 12 lb 12.4 oz (12.775 lb)
Price in first year of sale 53.00 GB£
Collectors' prices
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Martin Bösch. See "Data change" for further contributors.
