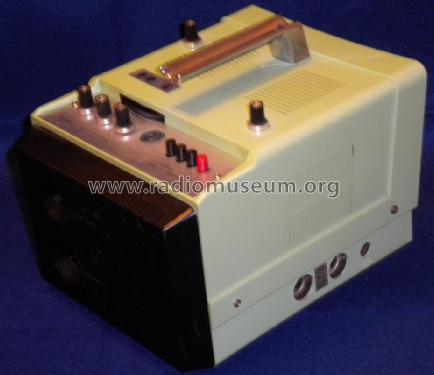

Pollicino
Effepi; Villanova d'Ardenghi (Pavia)
- Country
- Italy
- Manufacturer / Brand
- Effepi; Villanova d'Ardenghi (Pavia)
- Year
- 1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 225042
Manufacturer documentation
- Number of Tubes
- 1
- Valves / Tubes
- 150AFB4
- Number of Transistors
- 25
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Batteries / addl. power jack / AC: 220 V / DC: 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pollicino - Effepi; Villanova d'Ardenghi
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 170 x 135 x 215 mm / 6.7 x 5.3 x 8.5 inch
- Notes
-
3 gamme VHF/UHF commutabili con pulsanti e sintonia continua a rotella. Tubo catodico da 6". Alimentazione con presa Din 3 poli e presa per batteria ausiliaria non presente.
Vedi anche il modello simile Effepi Intra-6.
- Net weight (2.2 lb = 1 kg)
- 2.850 kg / 6 lb 4.4 oz (6.278 lb)
- Price in first year of sale
- 128,000.00 itl
- Mentioned in
- Catalogo ANIE (n°14 1969/70 pag. 221)
- Literature/Schematics (1)
- Schemario TV ediz. ANTONELLIANA volume 14
- Author
- Model page created by Stefano Cerchi. See "Data change" for further contributors.
