Disco

• Country
• Germany

• Manufacturer / Brand
• Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona

• Year
• 1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 86973

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• SC207 МП20 SF126 GC121

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

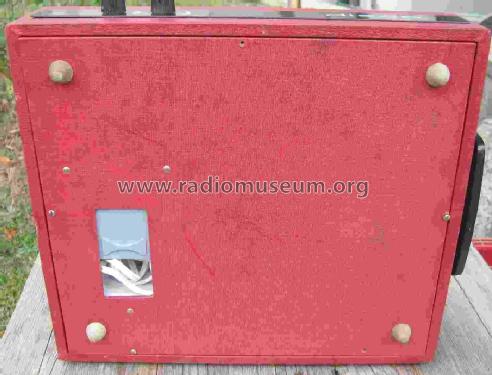

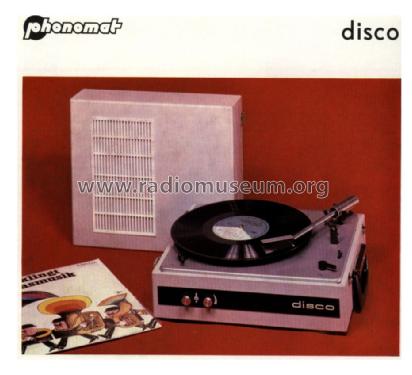

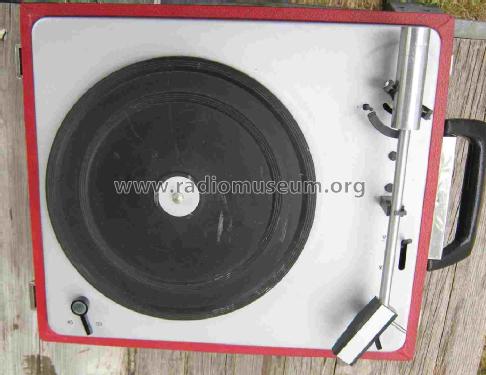

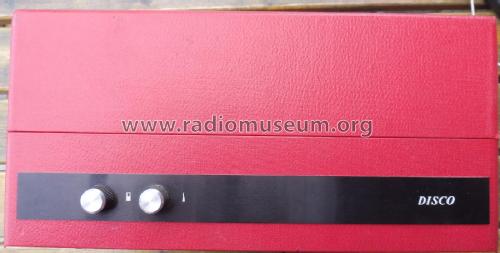

• Model: Disco - Phonotechnik Pirna/Zittau; VEB

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 185 x 290 mm / 13.4 x 7.3 x 11.4 inch

• Notes

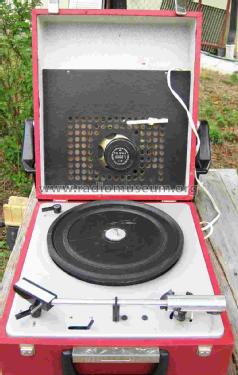

• Phonokoffer mit Monoverstärker, 33/45 UpM, 15-Ω-LS im abnehmbaren Deckel. Rohrtonarm, Tonarmlift, Stereo-Kristall-Abtastsystem KS23. Stereo-Ausgang für separaten Verstärker. - Firmierung des Herstellers "VEB Phonomat Pirna".

• Net weight (2.2 lb = 1 kg)
• 5.8 kg / 12 lb 12.4 oz (12.775 lb)

• Price in first year of sale
• 290.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert (Funkverlag Hein, Service-CD)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
