Stereo FM Receiver Classic 2536

Stereo FM Receiver Classic 2536; EICO Electronic (ID = 1886640) Radio
Stereo FM Receiver Classic 2536; EICO Electronic (ID = 2104652) Radio Stereo FM Receiver Classic 2536; EICO Electronic (ID = 1275491) Radio
Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329531) Radio Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329532) Radio
Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329533) Radio Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329534) Radio
Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329535) Radio Stereo FM Receiver Classic 2536; EICO Electronic (ID = 329536) Radio

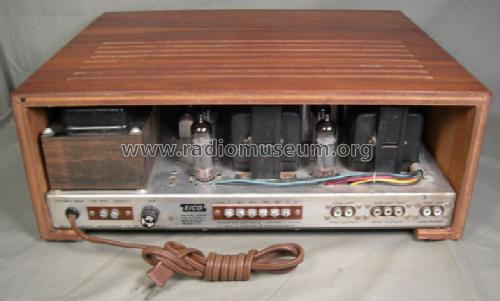

Stereo FM Receiver Classic 2536; EICO Electronic (ID = 1275492) Radio Stereo FM Receiver Classic 2536; EICO Electronic (ID = 1275493) Radio
Use red slider bar for more.
Stereo FM Receiver Classic 2536; EICO Electronic (ID = 2104652) Radio
EICO Electronic: Stereo FM Receiver Classic 2536 [Radio] ID = 2104652 1400x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo FM Receiver Classic 2536, EICO (Electronic Instrument Co.Inc.) Brooklyn:
aus ebay, #311849053509, mit Erlaubnis des Verkäufers jrcradio

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 20: 6AQ8 6AU6 6AU6 6AU6 6AU6 6AL5 EM84 7247 6AU6 6EU7 6EU7 7247 7247 7247 7247 6BQ5 6BQ5 6BQ5 6BQ5 GZ34
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 28 W (36 W max.)
from Radiomuseum.org Model: Stereo FM Receiver Classic 2536 - EICO Electronic Instrument Co.
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 16 x 5.5 x 14 inch / 406 x 140 x 356 mm
Notes

FM stereo.

Was also available as a kit for $155

Price in first year of sale 210.00 $
Collectors' prices
Mentioned in USA: Electronics World, issue 12/1963, p. 26

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
