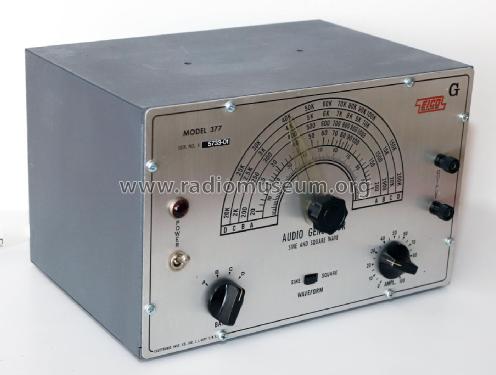

Audio Generator Kit 377-K

Audio Generator Kit 377-K; EICO Electronic (ID = 481707) Kit

Audio Generator Kit 377-K; EICO Electronic (ID = 481708) Kit
Audio Generator Kit 377-K; EICO Electronic (ID = 1291064) Kit Audio Generator Kit 377-K; EICO Electronic (ID = 229035) Kit
Audio Generator Kit 377-K; EICO Electronic (ID = 1291063) Kit Audio Generator Kit 377-K; EICO Electronic (ID = 2220410) Kit
Use red slider bar for more.
Audio Generator Kit 377-K; EICO Electronic (ID = 1291064) Kit
EICO Electronic: Audio Generator Kit 377-K [Kit] ID = 1291064 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio Generator Kit 377-K, EICO (Electronic Instrument Co.Inc.) Brooklyn

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1956 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 5: 6SJ7 6K6 6K6 6SN7 6X5
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Audio Generator Kit 377-K - EICO Electronic Instrument Co.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.2 x 7.2 x 7.5 inch / 284 x 183 x 191 mm
Notes Response +- 1.5 db from 60 cps to 150 kc.
Modell 377-K = kit version of 377.
Price in first year of sale 32.00 $
Literature/Schematics (1) Allied Radio Catalog Nº 150, 1956

Model page created by Vitor Oliveira. See "Data change" for further contributors.
